  • SSAW steel pipe BS 4360
  • SSAW steel pipe BS 4360
  • SSAW steel pipe BS 4360
  • SSAW steel pipe BS 4360

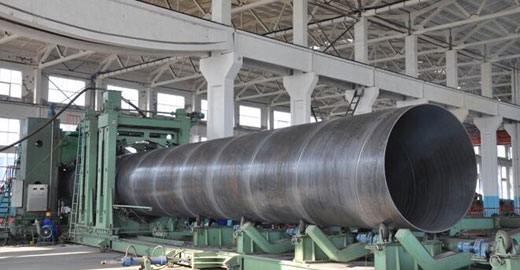

SSAW steel pipe BS 4360

Process:Spiral Submerged- Arc Welded Steel Pipe
Usage:Used for low pressure liquid delivery, such as water, gas, and oil; construction and piling

Product Name

Standard

Grade

OD

WT

Length

Usage


STRUCTURAL PIPES



BS 4360




Grade 43, Grade 50



219-3600mm

3.2-25.4mm

0.3-75m

Gas, heating, water supply, and electricity  (thermal power and Hydropower Station),

chemical industry, sewage treatment, water conservancy,
sidewall casing, piling structure, bridge,

the construction of the coast,  steel structure

1. Welded Pipe

SSAW Steel Pipe


Process:Spiral Submerged- Arc Welded Steel Pipe

Usage:Used for low pressure liquid delivery, such as water, gas, and oil; construction and piling

Standard:API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS, JIS, IS

Certificate:EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT

Out Diameter:219.1 mm – 2540mm (8"-100")

Wall Thickness:3.2mm - 25.4mm

Length:6 – 22 m

Steel Grade:API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360: Grade 43, Grade 50
EN: S275, S275JR, S355JRH, S355J2H

Surface:Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test, Exterior Size Inspection, Hydrostatic Test, X-ray Test

Mill Test Certificate:EN 10204/3.1B



OD/mm WT/mm
6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
219.1 √ √ √
273 √ √ √
323.9 √ √ √ √ √ √ √ √
355.6 √ √ √ √ √ √ √ √
406.4 √ √ √ √ √ √ √ √
457.2 √ √ √ √ √ √ √ √
508 √ √ √ √ √ √ √ √
559 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
610 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
660 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
711 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
762 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
813 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
863 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
915 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
965 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1016 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1066 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1117 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1168 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1217 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1320 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1422 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1524 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1626 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1727 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1829 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
1930 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
2032 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
